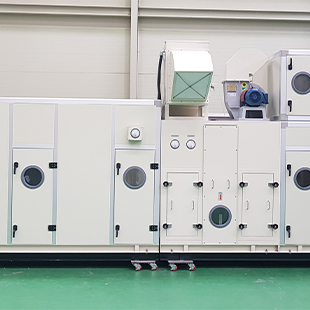

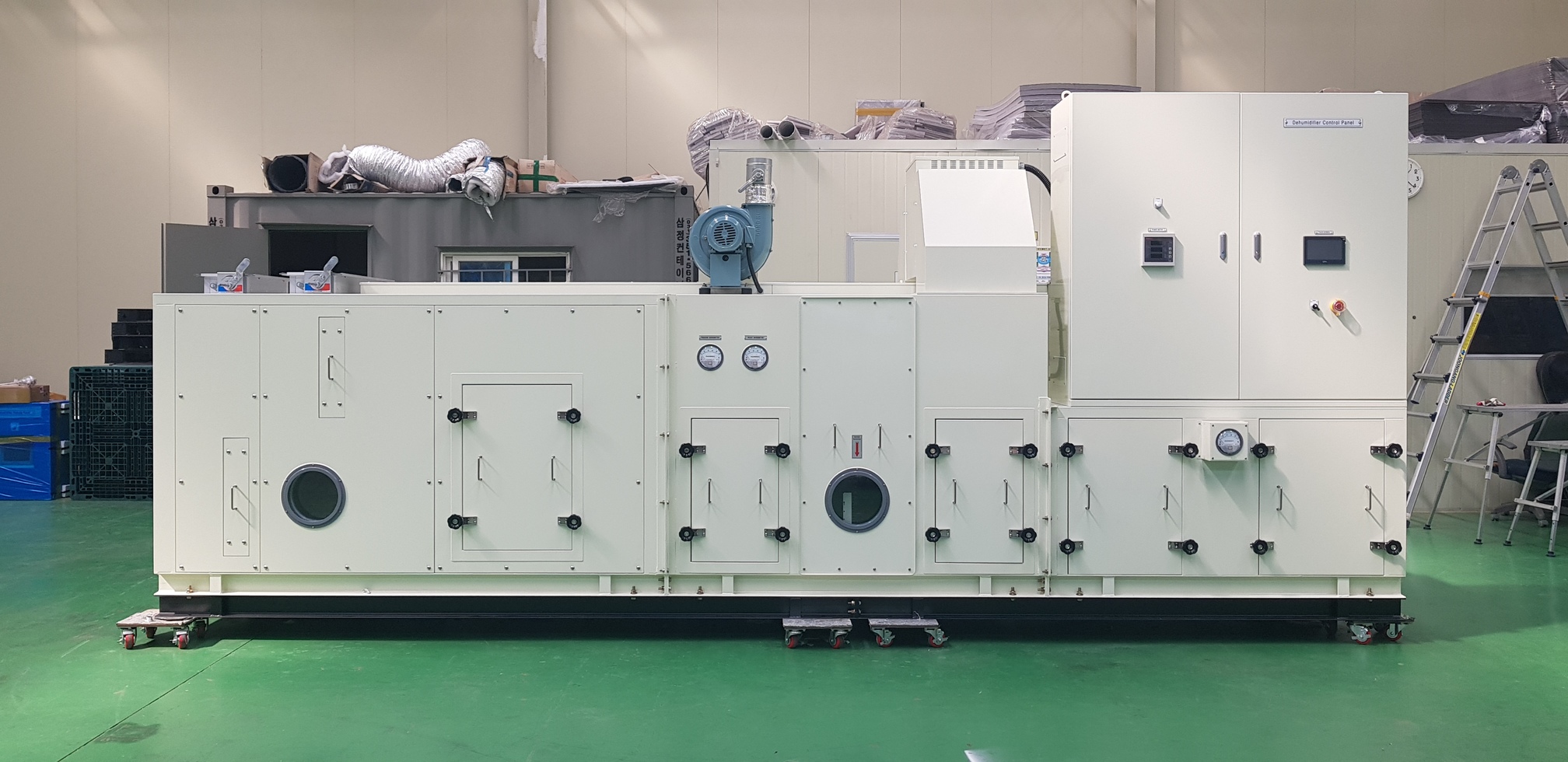

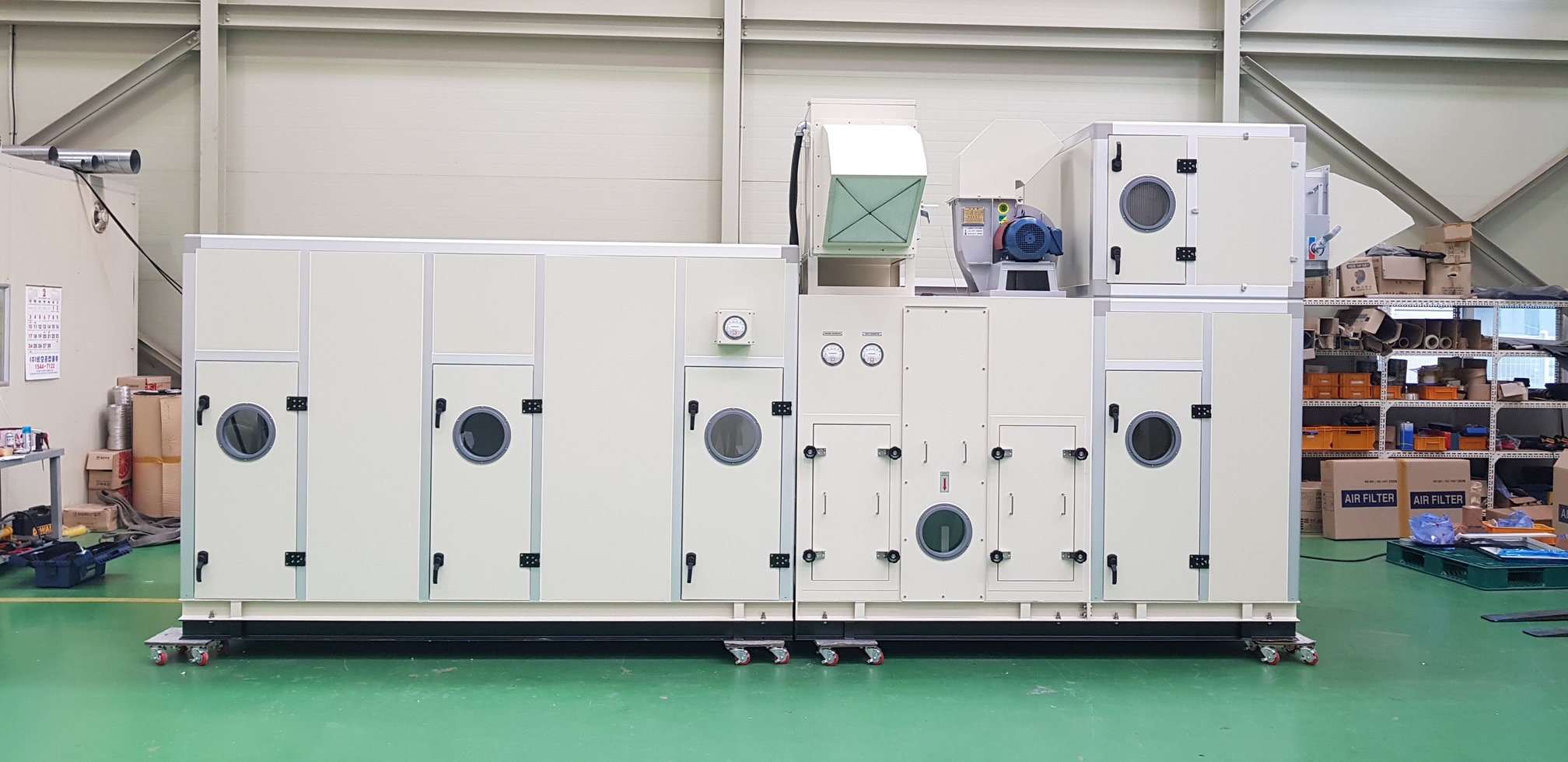

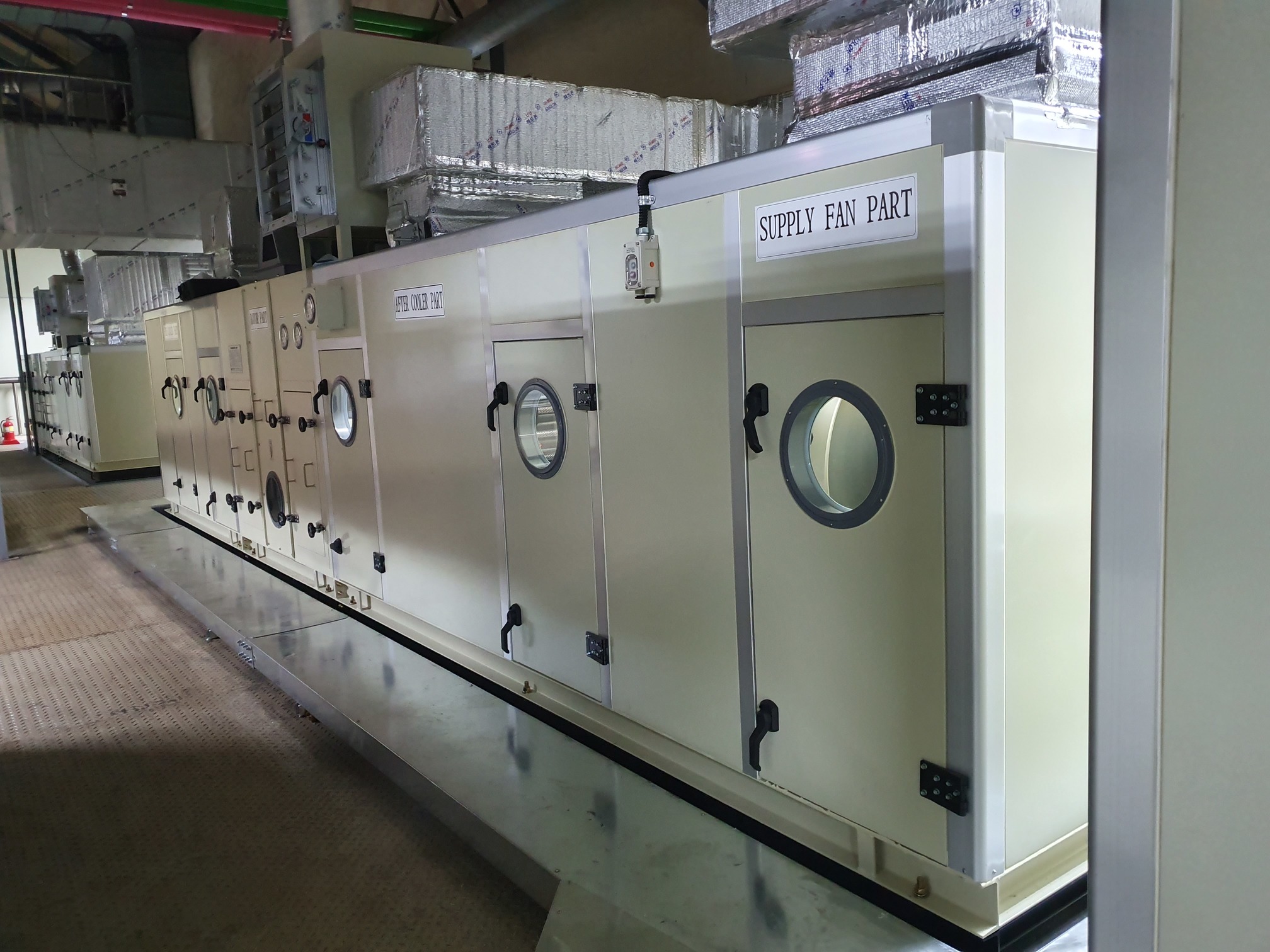

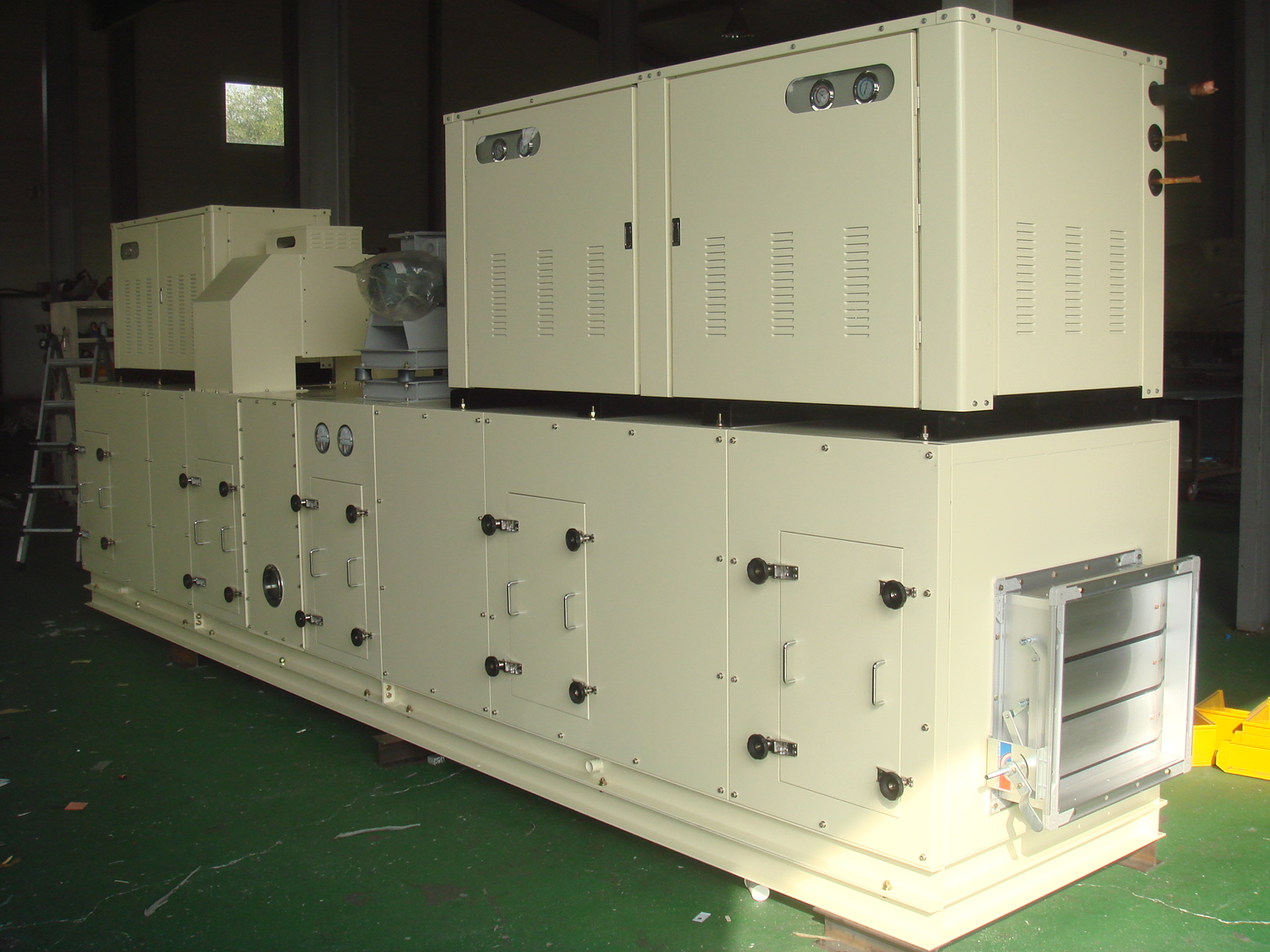

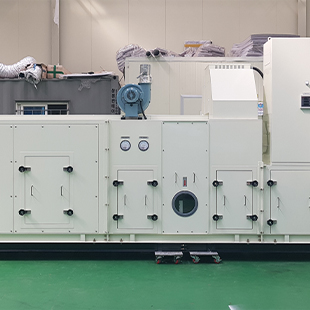

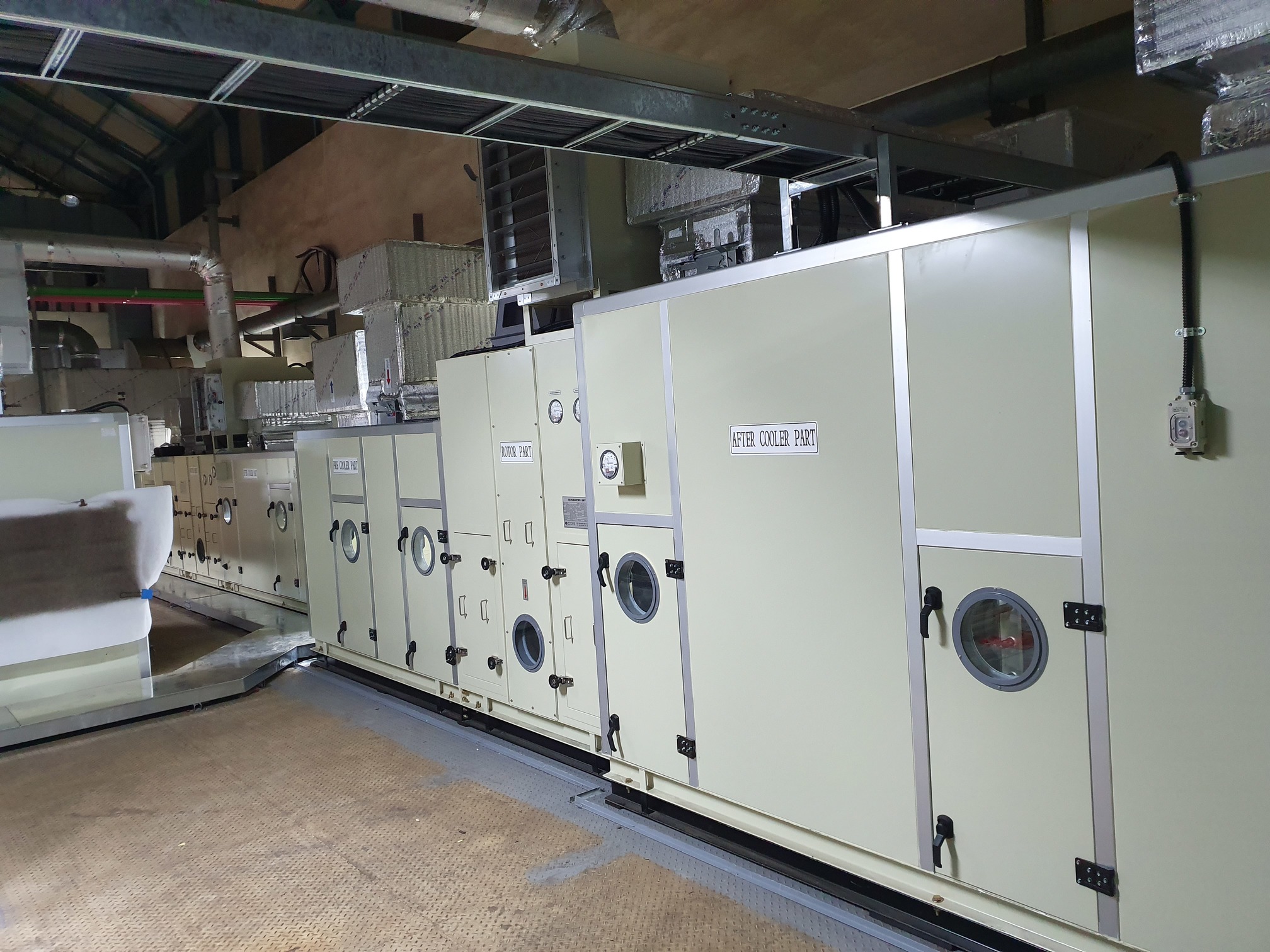

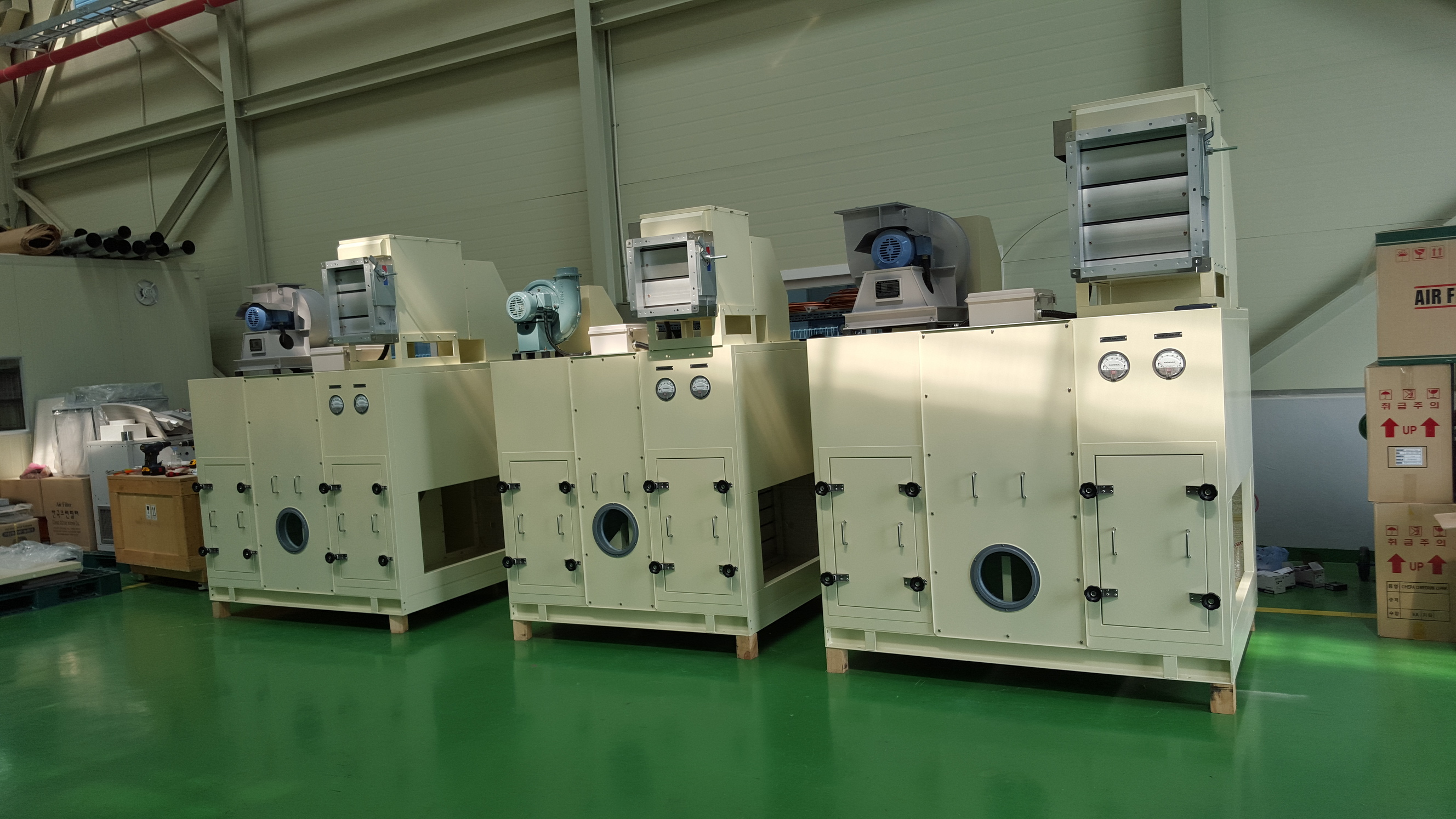

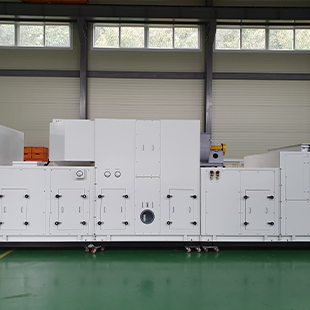

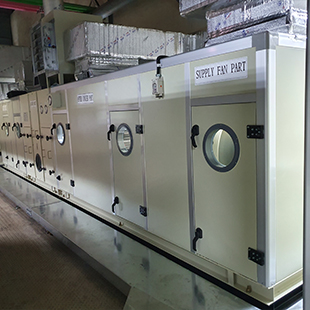

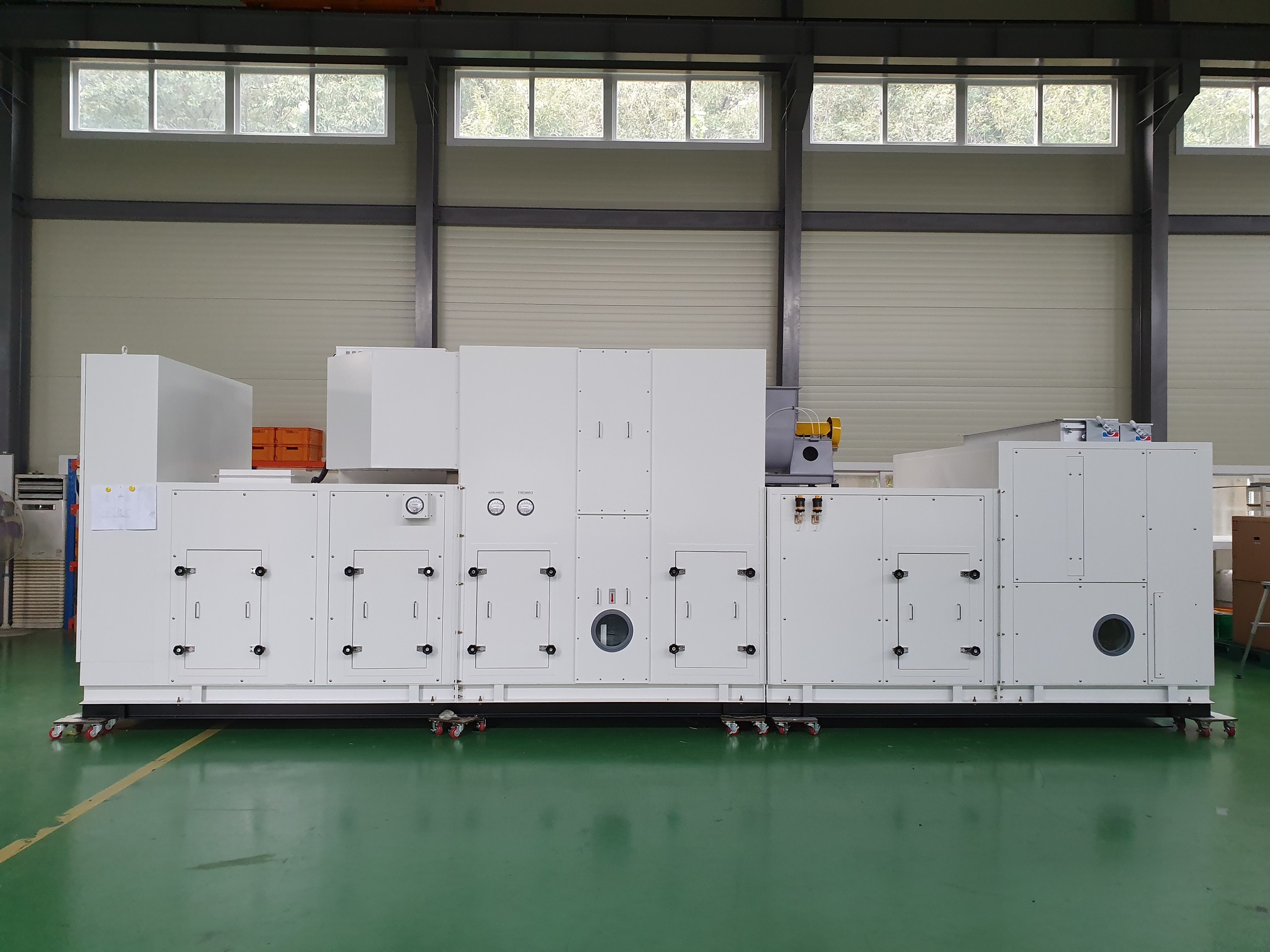

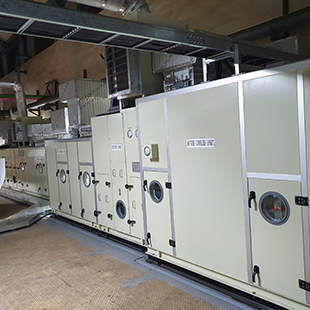

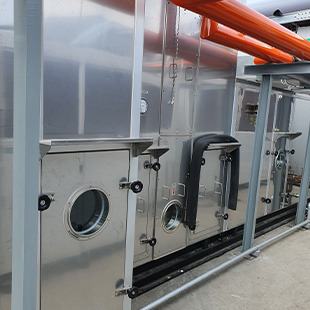

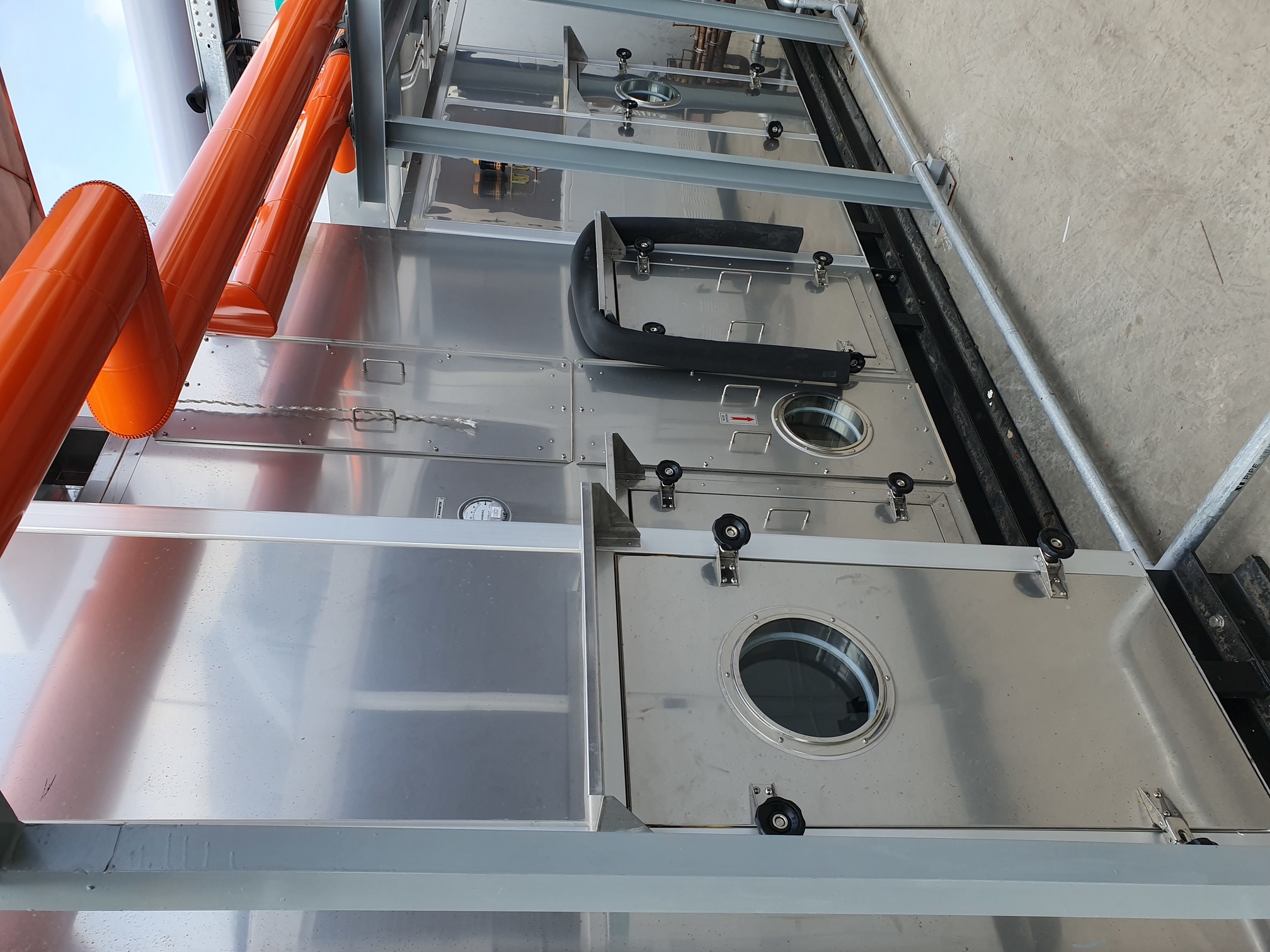

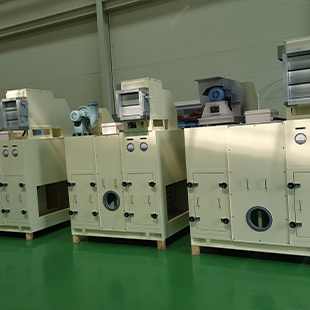

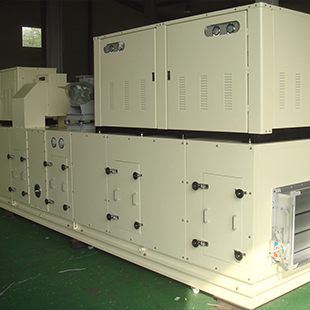

Model | SHDM-550 | SHDM-770 | SHDM-965 | SHDM-1220 | SHDM-1525 |
| ―1 | ―2 | ―1 | ―2 | ―1 | ―2 | ―1 | ―2 | ―1 | ―2 |
Size | Width | mm | 1300 | 1500 | 1300 | 1500 | 1500 | 1700 | 1500 | 1700 | 1500 | 1700 |
| Depth | mm | 850 | 1100 | 1400 | 1650 | 1950 |
| Height | mm | 900 | 1150 | 1450 | 1700 | 2000 |
Process Air | Air Voiume | CMH | 600~1600 | 1400~3800 | 2300~6200 | 3800~10400 | 6000~16500 |
| Motor | Kw | 0.4~1.5 | 1.5 | 0.75~3.7 | 1.5~3.7 | 1.5~3.7 | 2.2~5.5 | 2.2~7.5 | 3.7~7.5 |
| Static Pressure | mmAq | 63~86 | 76~122 | 63~86 | 76~122 | 63~86 | 76~122 | 63~86 | 76~122 | 63~86 | 76~122 |
| Rotor Surface | ㎡ | 0.113 | 0.265 | 0.432 | 0.77 | 1.156 |
React Air | Air Voiume | CMH | 200~530 | 470~1300 | 777~2100 | 1293~3467 | 2000~5500 |
| Motor | Kw | 0.4~0.75 | 1.1 | 0.4~0.75 | 1.1 | 0.75~1.5 | 0.75~2.2 | 1.5~2.2 | 0.75~3.7 | 1.5~3.7 | 1.5~5.5 |
| Static Pressure | mmAq | 72~106 | 94~160 | 72~106 | 94~160 | 72~106 | 94~162 | 72`106 | 94~162 | 72~106 | 94~162 |
| Rotor Surface | ㎡ | 0.038 | 0.038 | 0.144 | 0.256 | 0.385 |
Rotor | Diameter | mm | 550 | 770 | 965 | 1220 | 1525 |
| Thickness | mm | 200 | 400 | 200 | 400 | 200 | 400 | 200 | 400 | 200 | 400 |
| Geared Moter | Kw | 0.04 | 0.04 | 0.09 | 0.09~0.2 | 0.2 |
| Eiectric Heater | Kw | 10~28 | 21~58 | 36~90 | 60~162 | 64~253 |
| Rotor Heater | Steam Hear(5kg/㎠) | kg/h | 17~48 | 36~90 | 61~154 | 102~276 | 160~432 |
| Insulation | ― | Glass Wool 50t +Glass Cloth |
| Filter | ― | Polyester(kps 6000N) A.F.I 85% |
Total Power | Electric | Kw | 10.8~30 | 22.5~41 | 22.1~57 | 22.9~58 | 38.3~95 | 38.3~98 | 63.9~172 | 63.9~173 | 99.4~264 | 99.4~266 |
| Steam (5kg/㎠) | Kw | 0.83~2.3 | 0.9~12.5 | 1.18~4.4 | 1.93~5.2 | 2.35~5.3 | 2.35~7.8 | 3.9~9.9 | 3.9~11 | 5.4~11 | 5.4~13 |
| Weinght | ㎏ | 220 | 280 | 290 | 360 | 500 | 560 | 720 | 850 | 1000 | 1100 |
| Dehumidiffer Cap | kg/h | 10.4 | 10.6 | 24.6 | 25.1 | 40.2 | 41 | 67.4 | 68.6 | 107 | 109 |
Model | SHDM-1940 | SHDM-2190 | SHDM-2950 | SHDM-3550 |
| ―1 | ―2 | ―1 | ―2 | ―2 | ―2 |
Size | Width | mm | 1700 | 1900 | 1800 | 2000 | 2200 | 2600 |
| Depth | mm | 2350 | 2600 | 3400 | 4000 |
| Height | mm | 2400 | 2650 | 3450 | 4000 |
Process Air | Air Voiume | CMH | 9700~26500 | 14000~36000 | 30000~60000 | 45000~96000 |
| Motor | Kw | 5.5~19 | 5.5~22 | 15~37 | 22~55 |
| Static Pressure | mmAq | 63~86 | 76~122 | 63~86 | 76~122 | 76~122 | 76~122 |
| Rotor Surface | ㎡ | 2.082 | 2.542 | 4.377 | 6.483 |
React Air | Air Voiume | CMH | 3233~8833 | 4700~12000 | 10000~20000 | 15000~32000 |
| Motor | Kw | 1.5~5.5 | 1.5~11 | 2.2~7.5 | 5.5~18.5 | 11~30 |
| Static Pressure | mmAq | 72~106 | 94~162 | 72~106 | 94~162 | 94~162 | 94~162 |
| Rotor Surface | ㎡ | 0.694 | 0.847 | 1.442 | 2.138 |
Rotor | Diameter | mm | 1950 | 2190 | 1950 | 1950 |
| Thickness | mm | 200 | 400 | 200 | 400 | 400 | 400 |
| Geared Moter | Kw | 0.2 | 0.4 | 0.75 | 1.5 |
| Eiectric Heater | Kw | 139~405 | 172~496 | 368~736 | 553~1179 |
| Rotor Heater | Steam Hear(5kg/㎠) | kg/h | 219~691 | 293~846 | 628~1256 | 944~2012 |
| Insulation | ― | Glass Wool 50t +Glass Cloth |
| Filter | ― | Polyester(kps 6000N) A.F.I 85% |
Total Power | Electric | Kw | 146~430 | 146~436 | 180~526 | 389~792 | 588~1266 |
| Steam (5kg/㎠) | Kw | 7.2~25 | 7.2~30 | 8.1~30 | 8.2~30 | 22~57 | 35~87 |
| Weinght | ㎏ | 1200 | 1300 | 1400 | 1650 | 6000 | 7800 |
| Dehumidiffer Cap | kg/h | 172 | 175 | 233 | 238 | 396 | 634 |
※ 제습량의 경우는 입구조건 DB 20C, RH50%, X : 7.2g/kg 기준으로 일반형 기준임.
※ 상기의 도면에 PRE COOLER와 AFTER COOLER등을 조합하므로 다양한 조건에 대응할 수 있습니다.
